Applications

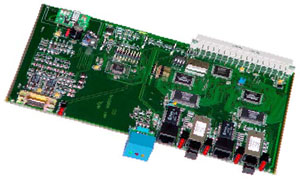

The main application of KGET Interface Convertor is to connect devices with Ethernet interface through telecommunication network. Any of two Interface Convertor realize Ethernet Bridge function or Switch function at layer 2.
Basic functions
- Two independent Interface Convertors on one unit.
- Any of two Interface Convertor realize Ethernet Bridge function with 2048 kbit/s maximum WAN interface capacity.
- At Ethernet side there are two ports: electrical 10/100 BaseTX interface and optical 100 BaseFX interface.
- Electrical Ethernet interfaces are half/full duplex with auto negotiation procedure which define the type of interface 10 or 100 Mbit/s.
- Interface Convertors are transparent for all higher order protocol (TCP-IP, XNS, ISO,...).
- VLAN can be configured for any port independently.
- Support for QoS priority choice according to the port or IEE802.1p
- Synchronization: local clock or external clock from received G.703 signal.
- Loop test possibility.
- Integrated control and monitoring, SUNCE-M, using OLC unit.
